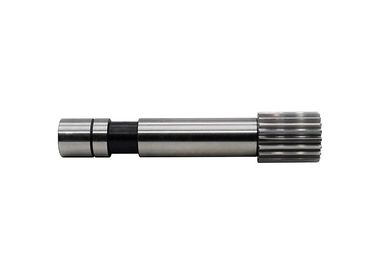

M1.0 20T Drive Pinion Shaft 20CrMnTi Carburizing Treatment helical

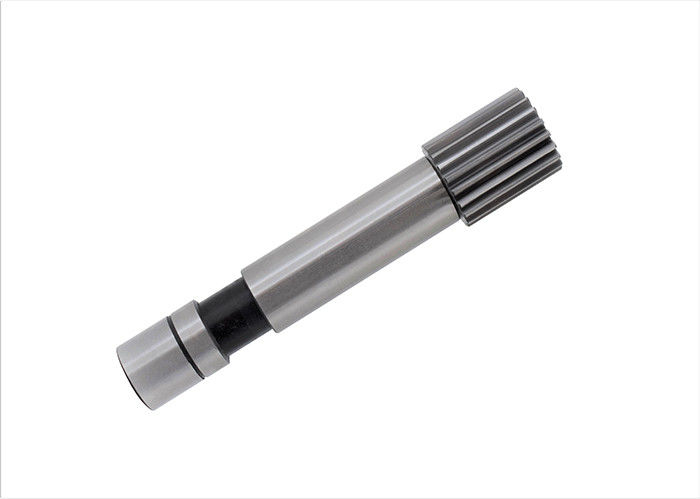

M1.0 20T Drive Pinion Shaft 20CrMnTi Carburizing Treatment helical

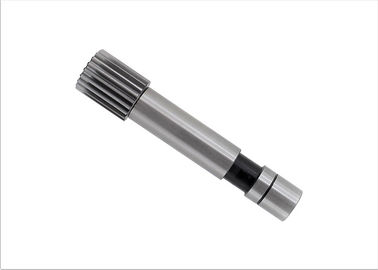

M1.0 20T Drive Pinion Shaft 20CrMnTi Carburizing Treatment helical
video play

Large Image :  M1.0 20T Drive Pinion Shaft 20CrMnTi Carburizing Treatment helical

Product Details:
Place of Origin: China
Brand Name: Nierson
Certification: RoHS
Model Number: N11006010
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: negotiable
Packaging Details: Tray + carton
Delivery Time: 30-35 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1,000 piece / month
Detailed Product Description
Material: 20CrMnTi Number Of Teeth: 20
Module: 1.0 Quality Class: 7-6-6 EG
Heat Treatment: Carburizing HRC58-62
High Light:

M1.0 Drive Pinion Shaft


20T Drive Pinion Shaft


Carburizing Treatment Helical Gear Shaft

CarburizingNierson manufactures motor shafts up to Max. Diameter 120mm, length 500mm with all types of steel alloys and stainless steels. Holding up to an DIN3974 class 5, AGMA 2000 A-88  class 10


20T M1.0 20CrMnTi Carburizing treatment Precision Drive Pinion Shaft


Number of Teeth 20
Module 1.0
Pressure Angle 20°
Material 20CrMnTi
Outside Diameter Ø22.0mm
Length 122.0mm
Heat Treatment Carburizing
Quality Class 7-6-6 EG


1, Machining ability

No. Item Description
1 Name Steel alloy and Stainless steel motor shaft and pinion shaft
2 Key Products: Motor shaft, worm shaft, Spur Gears, Helical Gears, Mitre gear, Crown Gears, Internal Helical Gears, Worm Gears, Plastic Gears, Sprockets & Pulleys Internal Splines, External Splines
3 Machining Ability Motor shaft and pinion shaft can be manufactured from 0.3 module to 3module up to 120mm in diameter and produced to meet AGMA Class 10 levels.
4 Quality Class AGMA Class 10 level, DIN 3962 6 level
5 Material Carton steel, stainless steel, cast irons ect.
6 Heat Treatment Carburizing and quenching,High-frequency quenching, Nitriding, Hardening and tempering. Selecting heat treatment according to the deifferent materials.
7 Surface Finish Zn-plating, Ni-plating, Cr-plating, Tin-plating, copper-plating, the wreath oxygen resin spraying, the heat disposing, hot-dip galvanizing, black oxide coating, painting, powdering, color zinc-plated, blue black zinc-plated, rust preventive oil, titanium alloy
8 Production equipments: Hobbing Machine,CNC Worm Milling Machine,Turning Machine,CNC Worm Hobber, Cylindrical Grinder/Centreless Grinder/CNC Worm Grinder,honing machine, Broaching, Sawing
9 Inspection Equipments Klingelnberg P26 gear checker,Gear Roll Testing Machines, Involute and Lead Gear Testing Machines,Mahr Digital Indicator, Universal Tool Microscope, Taylor Surface Roughness Tester,Roundness Tester,Rockwell Hardness Testing Machine
10 Quality System IATF 16949:2016
11 Available Certificate RoHS, SGS, Material certificates
12 Markets Automotive, Motorsport, Gear Motor, Precision Tooling, Agricultural Equipments, Medical, Oil & Gas,Aerospace, Construction Equipments, Valve and various gear reducers etc
13 Samples Lead Time and Express 35-40 working days by DHL, UPS,Fedex, TNT or EMS
14 Management of rejects Quality issues or deviation from drawings
15 Package Tray and Carton, according to cutsotmers' request



2, Quality system

  • IATF 16949:2016 Certificates
  • RoHS
  • PPAP

3, Inspection equipment

  • Klingelnberg P26 gear checker
  • Gear roll testing machines
  • Worm Helix Tester
  • Universal Tool Microscope
  • Taylor Surface Roughness Tester
  • Mahr Digital Indicator
  • Roundness Tester
  • Air Gauge
  • TV Microscope
  • Rockwell Hardness tester

4, Production equipment and capability

  • Production equipments are over 200pcs, including Turning, milling, hobbing, shaping, broaching, honing, grinding, sawing, cutter sharpening, thread etc.
  • Capability is over 30 million per year

5 Package

  • Tray + Carton
