Zhuhai Nierson Precision Gear Co., Ltd.
Home ProductsBrass Worm Gear

Brass Worm Gear Small Brass Spur Gears 1 Lead 0.5 High Wear Resistance

China Zhuhai Nierson Precision Gear Co., Ltd. certification
I received the gears on Wednesday, everything goes well.

—— Bernd Wager

The gears work great! Thank you very much. I may need to order more in a few months. I will also keep your company in mind for other gears in the future.

—— Jeff Birt

I'm Online Chat Now

Brass Worm Gear Small Brass Spur Gears 1 Lead 0.5 High Wear Resistance

Brass Worm Gear Small Brass Spur Gears 1 Lead 0.5 High Wear Resistance
Brass Worm Gear Small Brass Spur Gears 1 Lead 0.5 High Wear Resistance Brass Worm Gear Small Brass Spur Gears 1 Lead 0.5 High Wear Resistance Brass Worm Gear Small Brass Spur Gears 1 Lead 0.5 High Wear Resistance

Large Image :  Brass Worm Gear Small Brass Spur Gears 1 Lead 0.5 High Wear Resistance

Product Details:
Place of Origin: China
Brand Name: Nierson
Certification: RoHS
Model Number: N11005208
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: Vacuum + Tray + Carton
Delivery Time: 25-30 works day
Payment Terms: T/T, , Western Union, MoneyGram
Supply Ability: 5,000pcs / week
Detailed Product Description
Material: C36000 Number Of Teeth: 1
Module: 0.5 Quality Class: 7 / AGMA 2000-A88
High Light:

miniature brass gears

,

small brass pinion gears

 1 Lead 0.5 brass miniature worm pinion for gear motor



4 lead brass worm pinion for gear motor

Number of teeth 1
Module 0.5
Helix angle(RH) 13.0º
Quality class  7 (AGMA 2000-A88)
Outside diameter 7.5mm
Root diameter 5.36mm
Material  Brass C36000



1, Machining ability

  • DIN 3974 Quality Class: Class 5
  • Worm Lead No.: 1-6
  • Max. Module: 4.0
  • Max.Length: 120mm
  • Max Diameter: 500mm
  • Roughness: Ra 0.4
  • Material: Various Brass Alloys

2, Quality system

  • IATF 16949:2016 Certificates
  • RoHS
  • PPAP

3, Inspection equipments

  • Klingelnberg P26 gear checker
  • Gear roll testing machines
  • Worm Helix Tester
  • Universal Tool Microscope
  • Taylor Surface Roughness Tester
  • Mahr Digital Indicator
  • Roundness Tester
  • Air Gauge
  • TV Microscope
  • Hardness Tester
  • Rockwell hardness terster

4, Production equipments and capability

  • Production equipments are over 200pcs, including Turning, milling, hobbing, shaping, broaching, honing, grinding, sawing,cutter sharpening, thread etc.
  • Capability is over 30 million per year

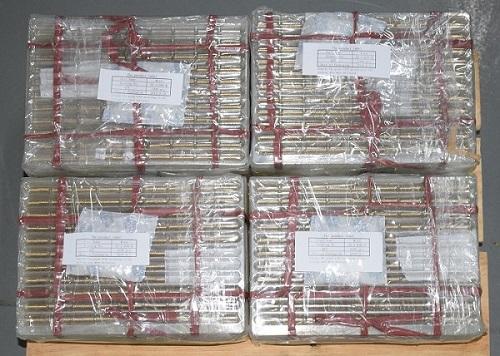

5, Package

  • Tray +carton+vacuum package

Brass Worm Gear Small Brass Spur Gears 1 Lead 0.5 High Wear Resistance 0
