Product Details:
Payment & Shipping Terms:
|
Material: | SUS 304 | Number Of Teeth: | 26 |
---|---|---|---|
Module: | M 1.0 | Pressure Angle: | 20° |
Accuracy Grade: | 9 / DIN 3974 | Namr: | Miniature Spur Gears |
High Light: | Industrial Equipments Miniature Spur Gears,Carbo Nitride Miniature Spur Gears,T26 Stainless Steel Spur Gear |
Nierson manufactures external spur and helical gears from 5mm diameter up to 300mm diameter with all types of materials, bronze, steel alloys, stainless steels, plastics, phenolic, ductile irons, cast irons and heat treating levels for all types of applications. Holding up to an DIN3962 class 6

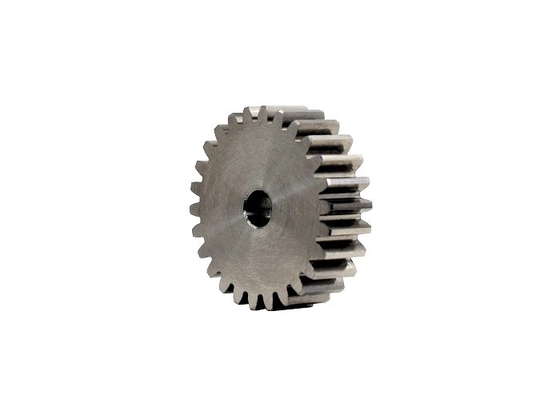

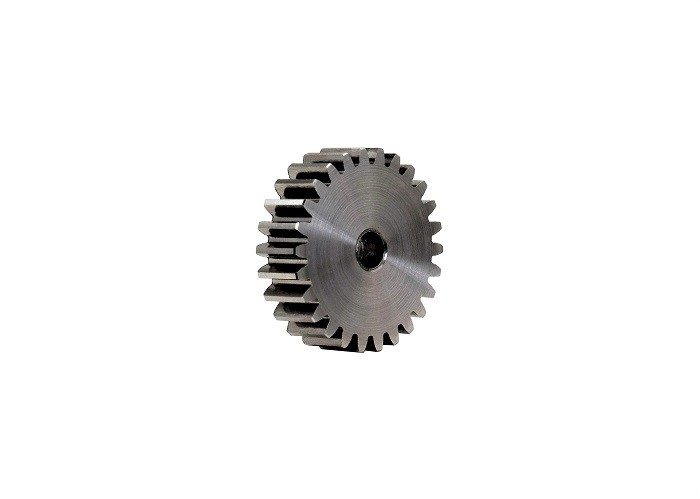

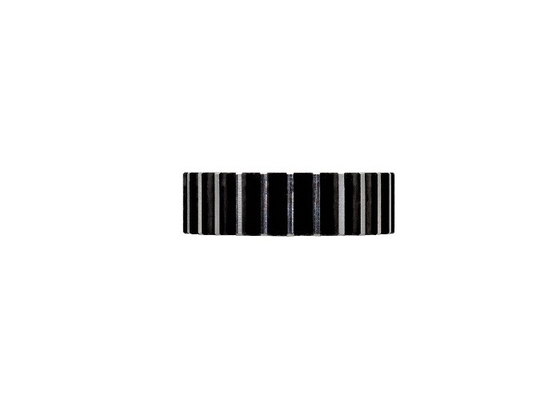

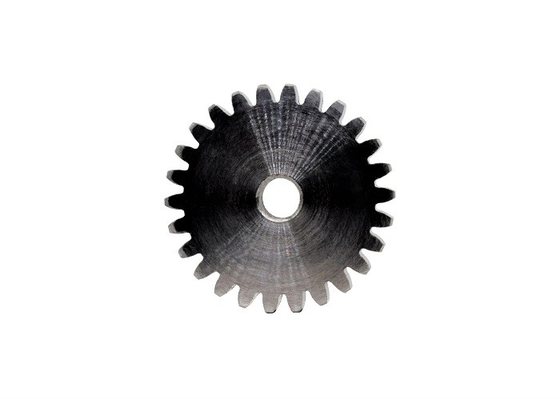

Industrial Equipments T26 M1.0 SUS 304 Stainless Steel Precision Spur Gear
Item | Gear Data |
Number of Teeth | 26 |
Module | M1.0 |
Outside diameter | 28.0mm |
Face width | 8.0 mm |
Accuracy grade | 9 / DIN 3974 |
Material | SUS 304 |
1, Machining ability
Quality class | 10 / AGMA 2000-A88, 6 / DIN 3972 |
Number of Teeth | 2-300T |
Maximum Module | M3.5 |
Maximum diameter | 500mm |
Maximum Length | 500mm |
Roughness | Ra 0.4 |
Material | Various alloy and plastic |
Heat treatment | Carbo-Nitride, Induction, Nitriding, Quench ect level. |
2, Quality system
3, Inspection equipment
4, Production equipment and capability
5 Package
